WEED-IT DASH
Ultimate control

DASH is your on-board WEED-IT control centre, giving you touch-screen control over your QUADRO detection and spraying system, and real-time feedback on paddock operations and conditions.

DASH quick reference guide

Farming beyond accurate 10" DASHCOM touchscreen 25x25 cm grids Individual nozzle control Mapping layers Data accessibility Predictive maintenance Farming beyond accurate 10" DASHCOM touchscreen 25x25 cm grids Individual nozzle control Mapping layers Data accessibility Predictive maintenance Farming beyond accurate 10" DASHCOM touchscreen 25x25 cm grids Individual nozzle control Mapping layers Data accessibility Predictive maintenance Farming beyond accurate 10" DASHCOM touchscreen 25x25 cm grids Individual nozzle control Mapping layers Data accessibility Predictive maintenance

WEED-IT DASH FAQ

What is WEED-IT DASH?

WEED-IT DASH is the latest control and user interface platform for WEED-IT optical spot spraying systems.

It combines real-time weed detection with advanced mapping, data visibility and system control – giving farmers maximum insight into every spray job and overall property spraying data.

How is DASH different from WEED-IT QUADRO?

WEED-IT QUADRO is the optical sensing and spot spraying system – WEED-IT DASH is the control and data platform that sits on top of QUADRO, providing:

– Touchscreen control in the cab
– Real-time system feedback
– Spray job mapping and reporting
– Cloud connectivity and data access

Together, they deliver both precision spraying and full operational visibility.

Can I retrofit DASH to my existing WEED-IT system?

Yes.

WEED-IT DASH is designed to be retrofitted to existing red and blue WEED-IT QUADRO systems.

The upgrade includes a new touchscreen, advanced controller and cabling, bringing modern control and connectivity to your current machine.

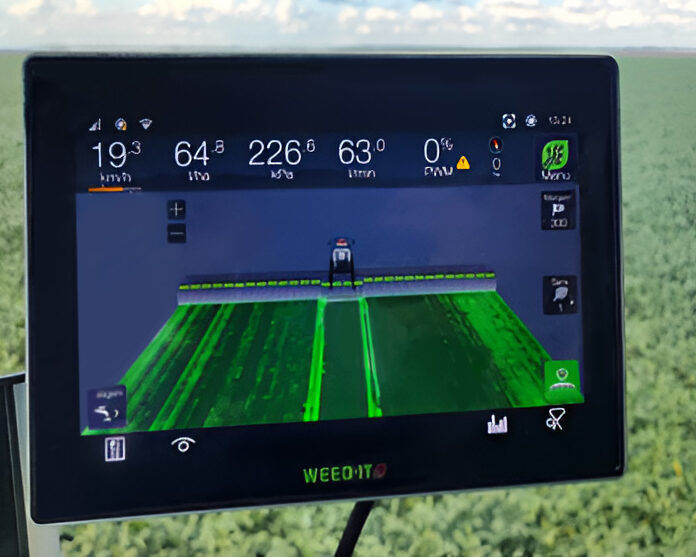

What does the DASH touchscreen do?

The DASH touchscreen is the operator’s control centre in the cab.

It allows you to:

– Monitor spray performance in real time
– View nozzle activity and system status
– Switch between spray modes and jobs
– Receive alerts and system feedback

It is designed to be simple, clear and easy to use in working conditions.

What kind of data does DASH provide?

DASH collects and displays detailed spray data, including:

– Weed detection maps
– As-applied spray data
– Area covered (visited maps)
– System and nozzle performance

-Crop density data

This gives growers a clear picture of weed pressure and spray effectiveness across every paddock.

What is the DASH Portal?

The DASH Portal is a cloud-based platform that allows you to access and manage your spray data from anywhere.

With the portal, you can:

– Create and send spray jobs to the machine
– Upload prescription maps
– Review completed spray jobs
– Analyse weed pressure over time

Do I need a subscription to use DASH?

Yes – WEED-IT DASH includes a data management and connectivity system that operates on an annual subscription.

This covers:

– Secure cloud data storage
– Access to the DASH Portal

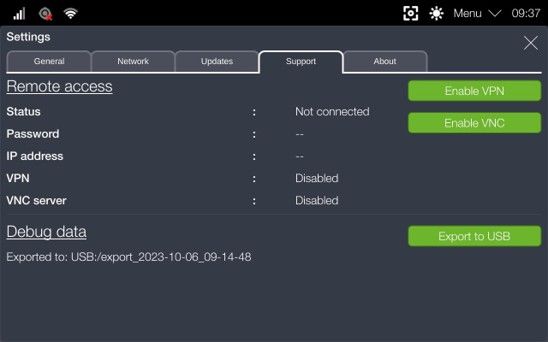

– Remote support and diagnostics
– Ongoing software updates

What are feature unlocks?

DASH is designed to grow with your operation.

Additional functionality can be activated as required, including:

– Nozzle-by-nozzle section control
– Prescription map spraying
– Advanced mapping layers
– Future capabilities such as row recognition

These features are enabled digitally, allowing you to upgrade your system without hardware changes.

Can DASH use prescription maps?

Yes.

With the prescription mapping unlock, DASH can import and execute prescription maps — allowing targeted spraying based on weed pressure or paddock data.

Does DASH work in all conditions?

Yes.

WEED-IT optical sensors detect chlorophyll, meaning the system works:

– Day or night
– In varying light conditions
– Without relying on external light sources

This ensures consistent and reliable weed detection.

What are the benefits of using DASH?

DASH builds on the benefits of WEED-IT spot spraying by adding visibility and control.

Growers benefit from:

– Reduced herbicide costs
– Improved understanding of weed pressure
– Better spray decision-making
– Greater operational efficiency

Who is DASH suited for?

WEED-IT DASH is suited to:

– Broadacre farmers
– Contractors
– Large-scale farming operations
– Growers wanting better data and control from their sprayer

Still have questions?

Talk to your local WEED-IT dealer (link) or request a demo today from our Territory Managers Mark Sloan (Vic, SA, WA) 0417 590 086 or Joe Williams (NSW, Qld) 0477 938 918

Contact

Check out what DASH can do for you

DASH can make your farming faster, easier and more efficient.

It offers you real-time field and machine data to optimize your crop protection. The state-of-the-art DASH interface allows you to fully customise the WEED-IT QUADRO detection and spraying system and provides real-time feedback on your in-paddock operations.

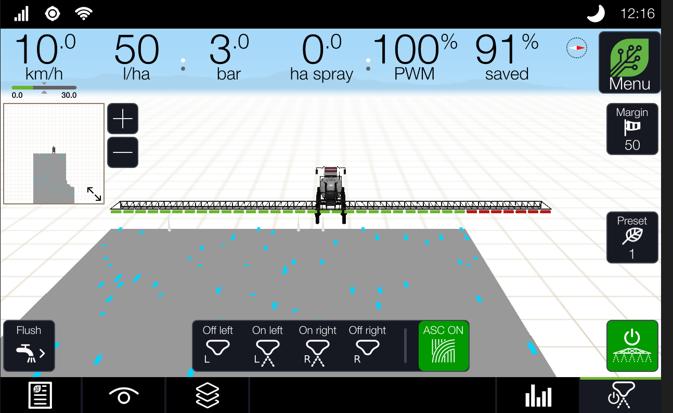

Section control per nozzle

Controlling every nozzle enables you to reduce the amount of spray overlap on the field

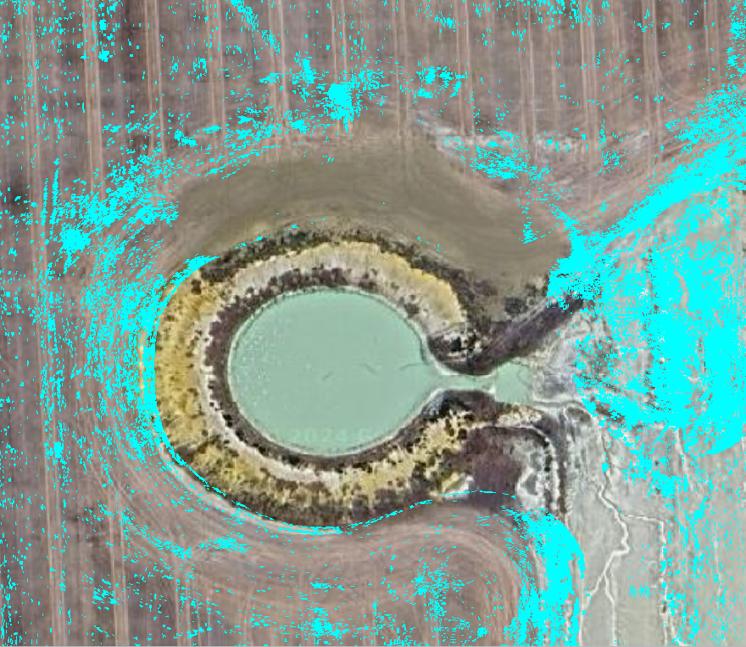

Mapping 'As Visited' and 'As Applied'

Check every corner of the ground you’ve visited with the highest-precision 25x25 centimetre grid

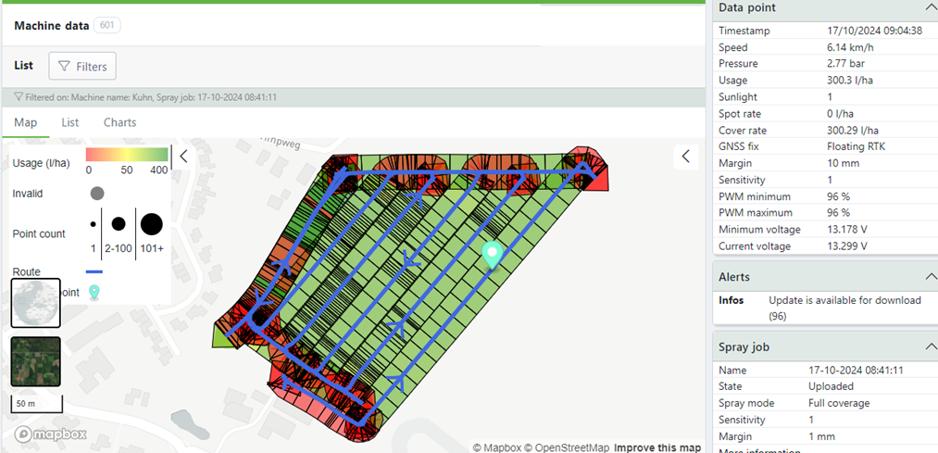

Prescription map

Create different task maps to spray your paddocks with optimum efficiency

Crop density data mapping

Gain deeper insights about weed density in your fallow, and monitor the growth and development of your crops

Double knock the weeds

Spray persistent weeds precisely and effectively in multiple rounds

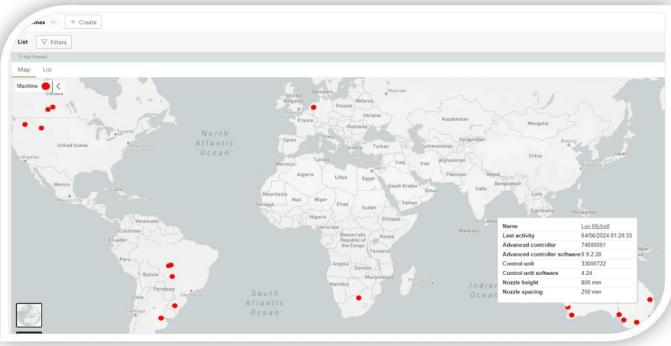

DASH portal

The central hub where all your data is stored, collected and displayed, anytime, on any device

Firmware updates over the air

Update your system via Wifi or LTE. The push of a button gets the latest software on all your WEED-IT components

EASILY INSTALLED ONTO YOUR SPRAYER

WEED-IT DASH can be added to your existing WEED-IT QUADRO, or can be retrofitted to nearly any brand and type of sprayer.
